The right proportion

Balancing the relationship between the human being, the elements inside a space, and the space as a whole.

A great building must begin with the unmeasurable, must go through measurable means when it is being designed and, in the end, must be unmeasurable. Louis Kahn - Architect

See all Buildings key features

Ceiling height, creating harmonious space

Proportion is about the relation between length, width, and height of a space. Define the minimum floor-to-ceiling height needed to support the user’s well-being, including the amount of natural light, ventilation, and acoustic comfort. Ceiling height will also have an impact on the space’s adaptability to different uses in the future.

Because ceilings cover large surfaces they have a strong impact in the perception of the space and in the overall atmosphere created. Not to forget the importance of environmentally friendly ceiling materials.

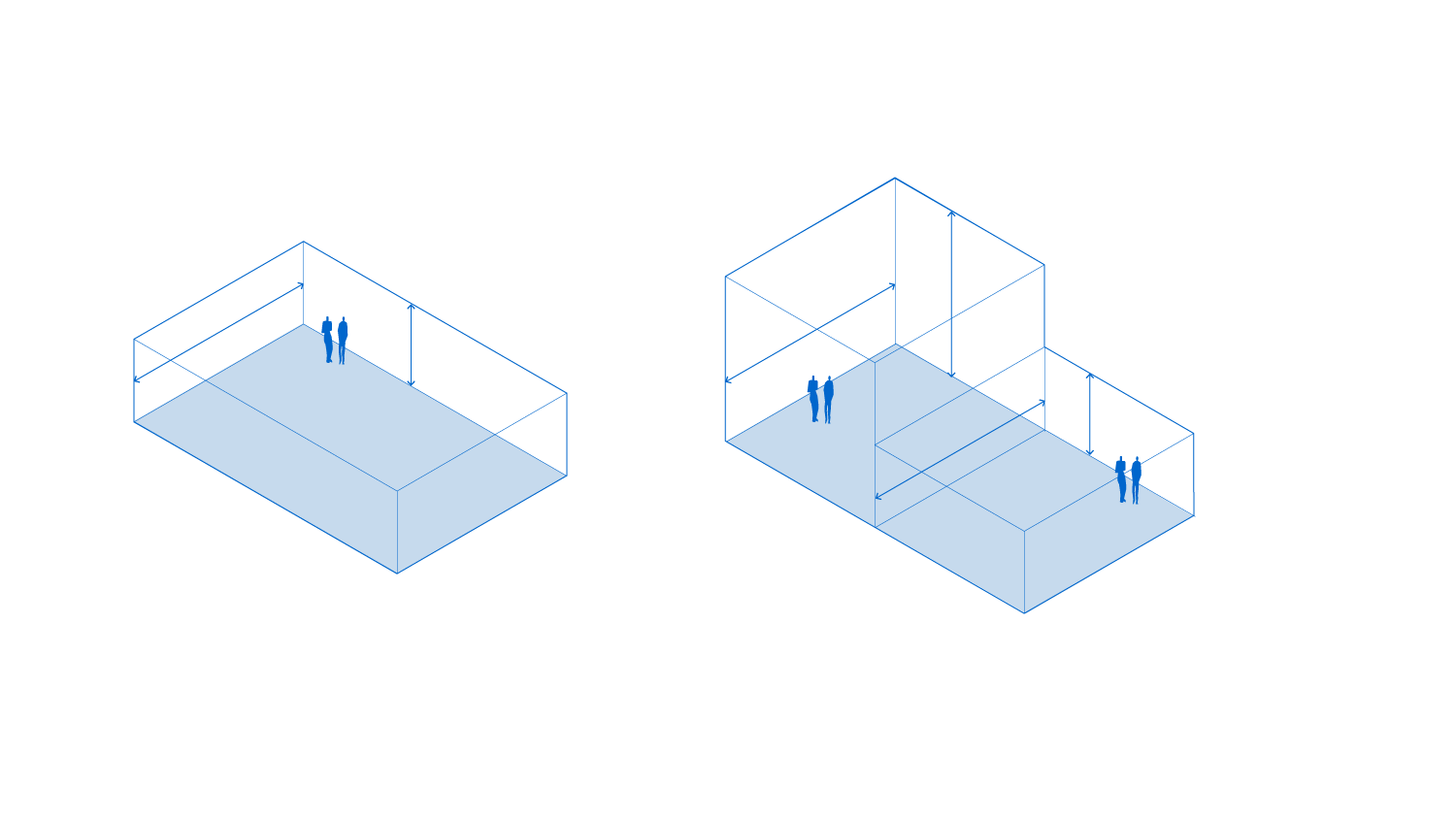

Balancing the space dimensions

Recommendations to achieve good proportions in large open spaces:

2.75m height for a floor area of no more than 100m2
3,00m height for a floor area up to 250m2
3,50m height for a floor area up to 400m2
4,00m height for a floor area of more than 400m2

Maximize height for a generous space feeling

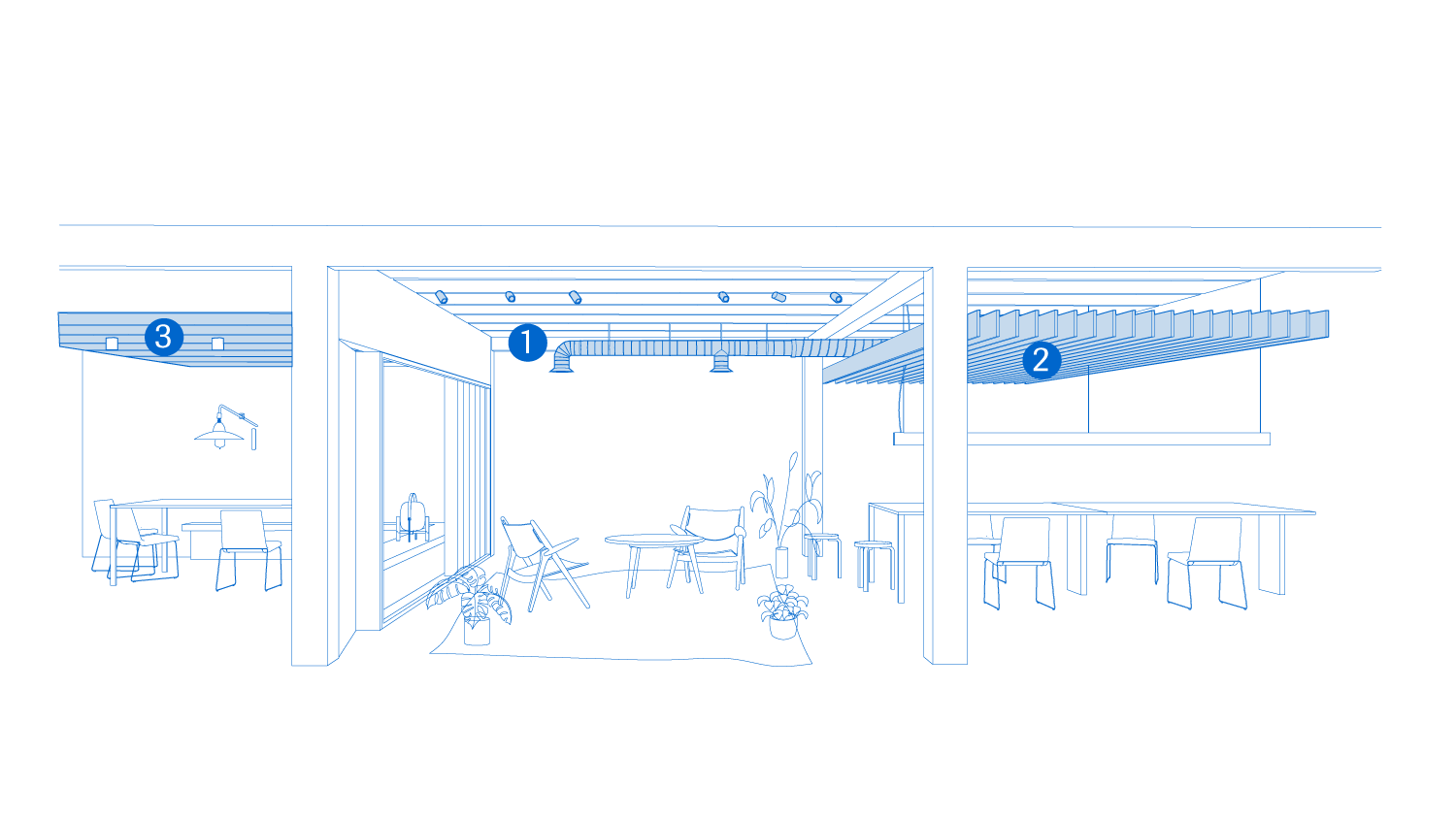

Ceilings are one of the main players in articulating areas within a space or rooms within a room, to create a balanced spatial experience.

Consider diverse ceiling options based on the project requirements and existing conditions. Choose different ceiling solutions to highlight space hierarchy and character, always based on an overarching space concept. Look for consistency in the treatment of spaces according to typologies.

Exposed structure

When appropriate, try to expose the building’s structure and HVAC/MEP installations.

Arrange installations rationally, according to the rhythm of the building’s structure.

Make sure the ceiling’s acoustic performance is adequate.

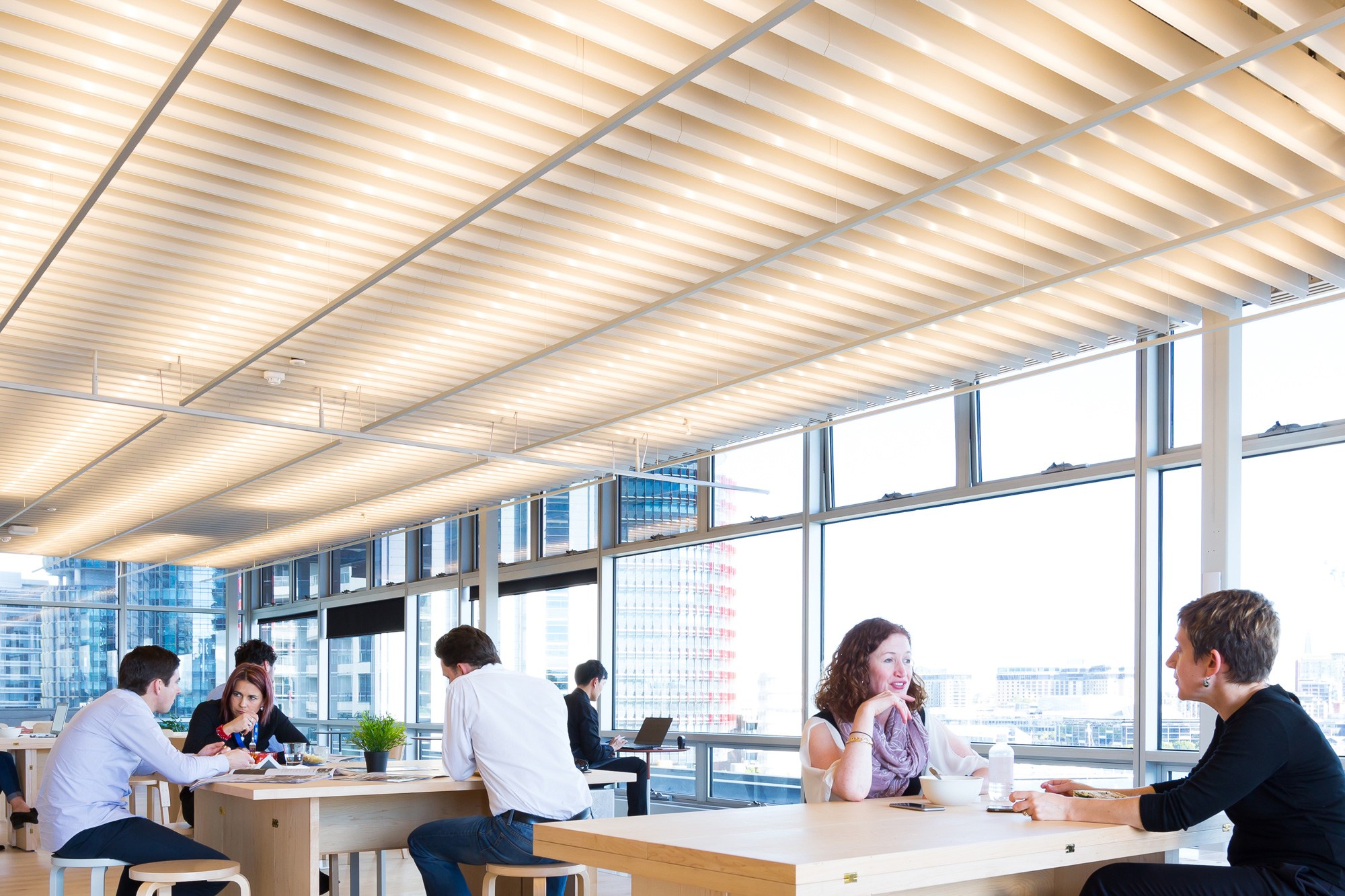

Permeable ceiling

Permeable baffle ceiling type allows to conceal installations, lighting and acoustic treatment above, and still offers a sense of depth.

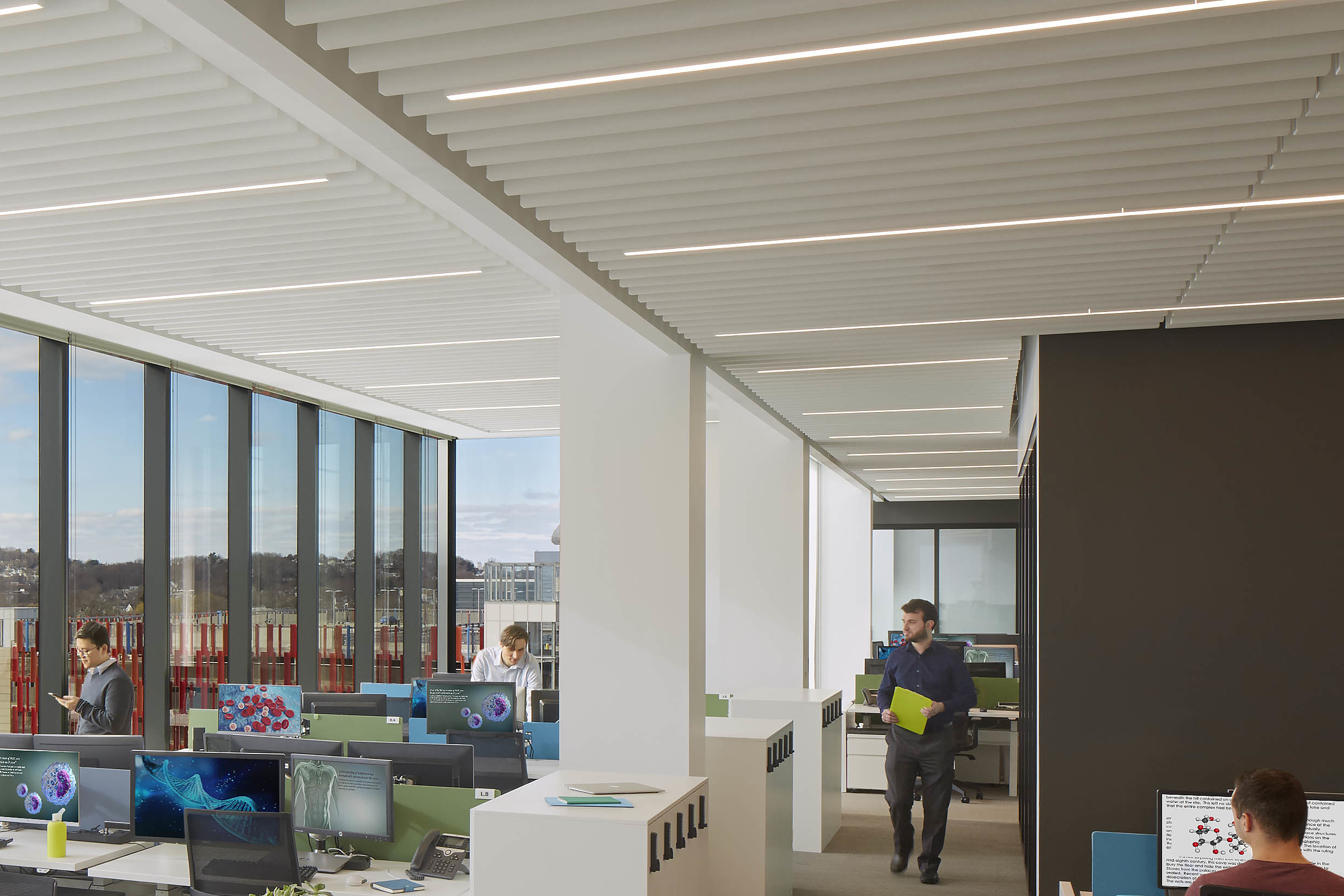

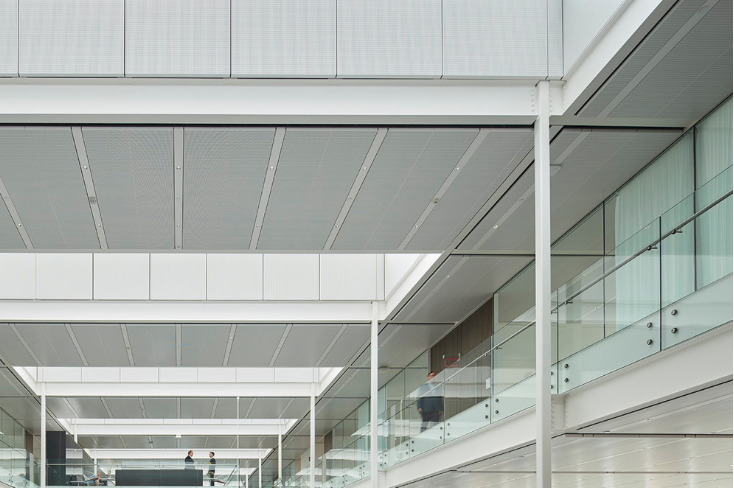

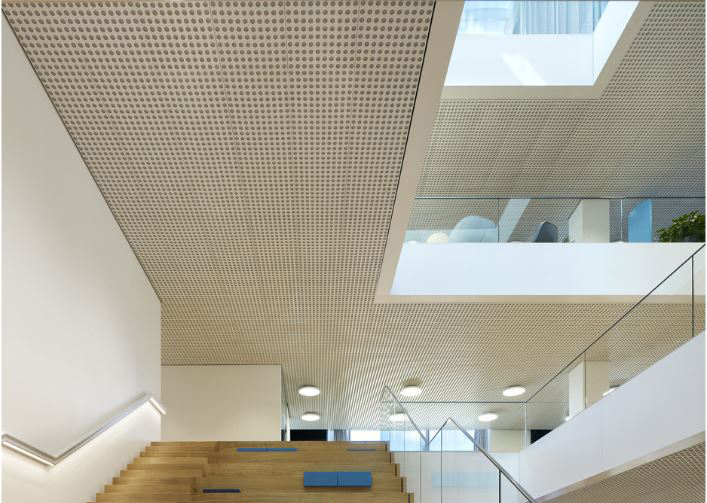

Suspended ceiling

Suspended ceiling should be as plain and homogeneous as possible, and include acoustic properties.

Avoid visible frames when possible.

Integrate lighting and installations carefully following a modular logic.

Looking up

If the ceiling is a concrete slab, cable trays should be painted in ecru color and air ducts should remain unpainted.

Layout together the lighting concept and ceiling rhythm for an integrated design and a consistent appearance.

The colour of suspended ceilings should be tone-in-tone with the interior finishes.

Visually unify the exposed installations in the room by painting them the same colour as the ceiling above.

Permeable baffle ceiling rhythm should be congruent with structural elements and room dimensions.

Use modular, rational criteria for the rhythm of lighting and installations, according to the building’s structure.

Key to The right proportion

Maximize the height for a generous space impression.
Choose ceiling types according to a concept defined by space functional typologies.
Use modular lighting systems and rational layouts and rhythm, based on building structure and spacial arrangements.
